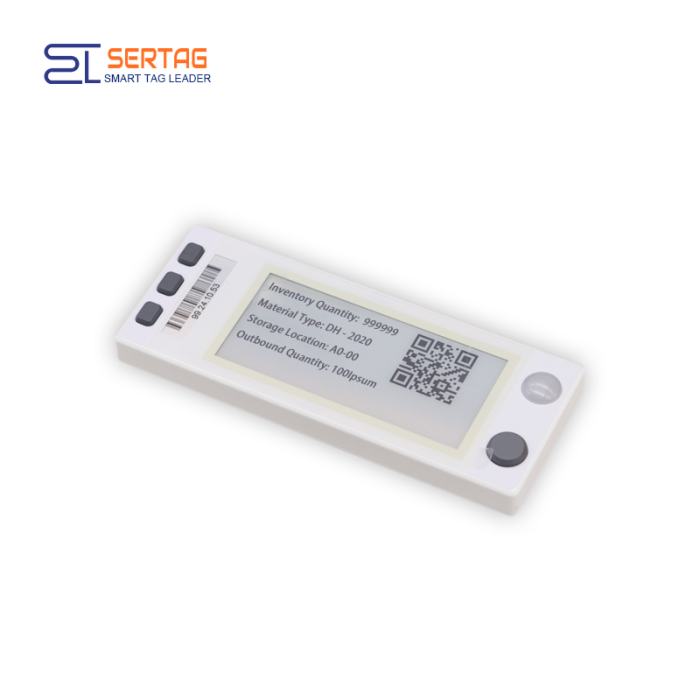

2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System

2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System

2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System
2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System2.9 inch Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System
CategoriesPick to Light Electronic Label
BrandSertag Pick to Light System Manufacturer
ModelPick to light SETP_Label_V3(Battery Powered)
Display TechnologyFull Graphic E ink Display
Dimension114.5x44.5x19mm
Button4 Buttons
Indicator Light1 RGB Lights
BatteryButton battery pack 1800mAh(CR2450*3)
Communication ModeWireless
FeatureIt can display text and pictures, low power
ApplicationFactory, Warehouse, E-commerce, Logistics...
Download
Update TimeNov 3,2024
Detail Information
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Description
Pick to light electronic tag
Pick to light System E-Paper Screen Low Power Wireless Warehouse Put to Light System
Elevate your picking efficiency with the SETP_Label_V3(Battery Powered). Designed to redefine warehouse operations, this battery-powered solution integrates cutting-edge technology into a compact 2.9-inch e-paper display. The 296x128 resolution ensures crystal-clear visuals, empowering your workforce with precise, unmistakable picking instructions while consuming remarkably low power for extended operational lifespans.

This innovative system features four buttons and a high-brightness LED indicator, enhancing visibility and usability in diverse environments. Whether streamlining picking processes or optimizing inventory management, the SETP_Label_V3(Battery Powered) stands as a beacon of efficiency, offering an agile, battery-powered solution for a dynamic warehouse landscape.

E-paper Pick to light System
pick to light epaper
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Specification
2.9 inch put to light label
Model
SETP_Label_V3(Battery Powered)
Display Technology
Full Graphic E ink Display
Dimension
114.5x44.5x19mm
Pixel Color
Black & White
Screen Size
2.9 inch
Case Color
White
Resolution
296*128
Button
4 Buttons
Working Temperature
0~50℃
Indicator Light
1 RGB Lights
Operating Frequency
868MHz
Communication Mode
Wireless
Viewing Angle
Nearly 180°
Wireless Firmware Update
Yes
Displayable Content
Text/Picture/Barcode/QRcode
Template design DIY
Yes
Battery
Button battery pack 1800mAh(CR2450*3)
Battery Lifetime
>1 year (10 times per day)
Pick to light System E-Paper Screen Low Power SETP_Label_V3 Installation Method
The SETP_Label_V3 offers three convenient installation methods to adapt to diverse environments:
pick to light fixation
Adhesive fixation for swift deployment
pick to light installation
Magnetic fixation for effortless repositioning
pick to light operation
Track slot fixation (can be customized)
The slot size of 34.5x66.5mm, offering adaptability tailored to your spatial needs.
Purchasing Guide for the Base Stations of Pick to Light SETP_Label_V3(Battery Powered)
pick to light base station
Recommend!
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.
Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
pick-to-light base station
Pick to light System E-Paper Screen Low Power SETP_Label_V3 Download
Pick To Light System-SETP_Label_V3
SETP_Label_V3 System Developer's Manual
Pick to Light Operation Manual
Pick to light System E-Paper Screen Low Power SETP_Label_V3(Battery Powered) Advantage
Ultra-low Power Consumption: Leveraging an e-paper display, this solution minimizes power usage, ensuring prolonged battery life.

Versatile Installation: With adhesive, magnetic, and customizable track slot options, adaptability is at the core of its design.

Enhanced Visibility: Featuring a high-brightness LED indicator light, ensuring clear and visible cues in any environment.

Battery-Powered Efficiency: Enjoy the freedom of battery power, providing flexibility and mobility in warehouse operations.
Pick to light System Application
pick to light in pharmacy
pick to light in factory

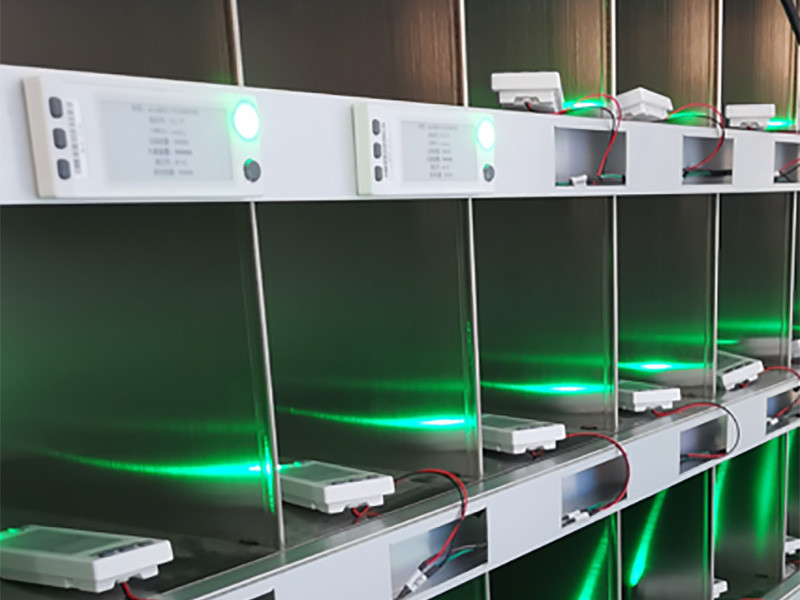

pick to light in warehouse
