Pick with Light Device with Green Button, No Digital Display Label for Warehouse Picking Solutions

Pick with Light Device with Green Button, No Digital Display Label for Warehouse Picking Solutions

Pick with Light Device with Green Button, No Digital Display Label for Warehouse Picking Solutions
CategoriesCAN Bus Technology Pick to Light
BrandSertag Pick to Light System Manufacturer
ModelPick with Light Device RY40-110
Size86mm(L)x50mm(W)x17mm(H)
Button life20 million times
Operating VoltageDC12V
Working Current120mA(max)
Working Temperature0℃~+60℃
Update TimeJul 24,2024
Detail Information
Pick with Light Device with Green Button, No Digital Display Label for Warehouse Picking Solutions
RY40-110 is an exemplary pick light product designed to integrate seamlessly into your warehouse pick to light system. Whether you're implementing digital picking strategies or looking for efficient picking solutions for your warehouse, the RY40-110 provides an optimal balance of simplicity and functionality.

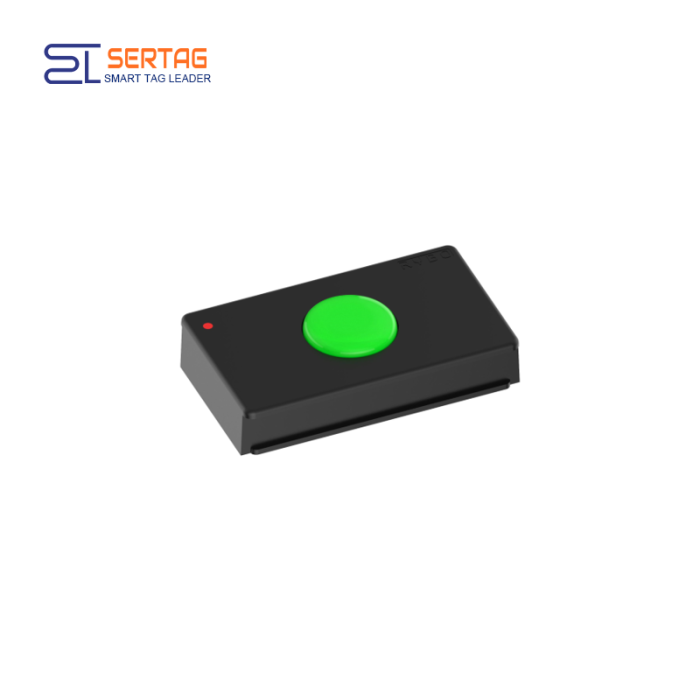

The RY40-110 features a sleek black housing and a prominent green button, designed to optimize your picking process with simplicity and precision.

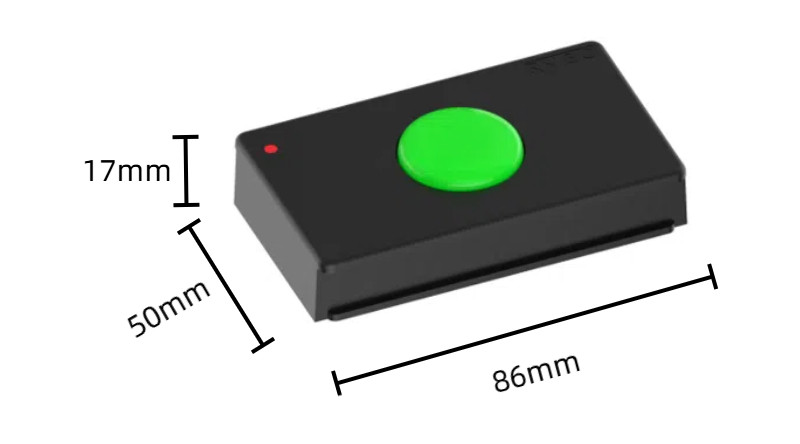

Pick with light size
Model
RY40-110
Name
Pin type single light electronic tag
Size
86mmx50mmx17mm
Button life
20 million times
Operating Voltage
DC12V
Working Current
120mA(max)
Power Consumption
1.5W(max)
Working Environment
0℃~+60℃, 20%~90%RH
Feature
Suitable for simple mode operation guidance and simple button operation
Applications of the RY40-110 Digital Picking Label

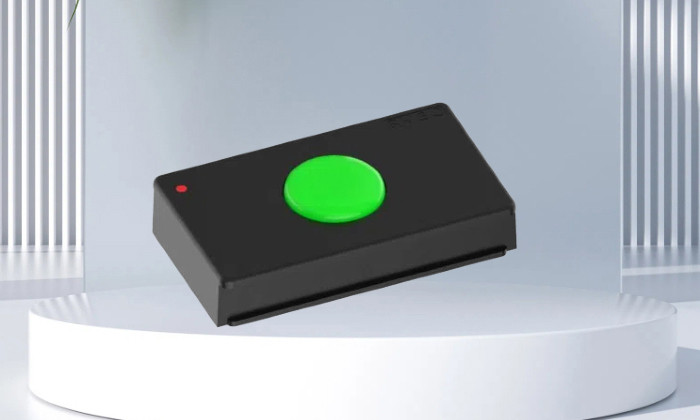

black pick to light device

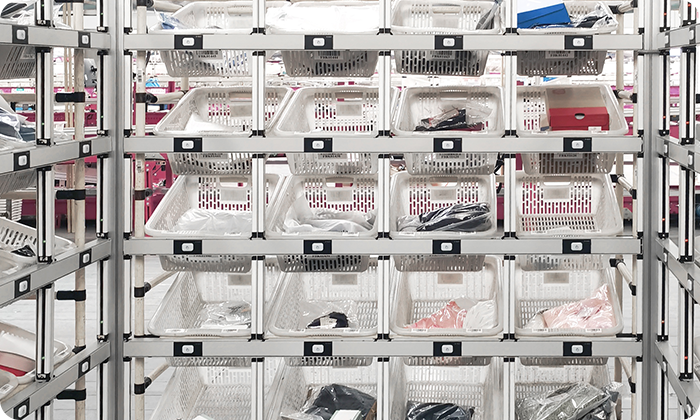

pick with light application
Pick with Light Device RY40-110 Features
♦ No Digital Display: The RY40-110 operates with a single light indicator, eliminating the need for a digital display. This ensures a clear and focused picking experience.

♦ Single Light Location Guidance: This system uses a single light to guide the picker to the correct location. The integrated button and light design come with seven color options for illumination, enhancing visibility and reducing picking errors.

♦ Flexible Light Control: The RY40-110 allows for both automatic and manual light extinguishing options. The system can automatically turn off the light once the task is complete, or the picker can manually confirm and extinguish the light.

♦ Simple Operation: Ideal for straightforward task guidance, this pick to light system features an intuitive button operation, making it suitable for simplified picking processes.

♦ Pin-Type Connection: The RY40-110 utilizes a pin-type connection, ensuring a secure and reliable installation.
