Picking to Light Warehouse LCD High-Brightness Digital Picking System for Factory

Picking to Light Warehouse LCD High-Brightness Digital Picking System for Factory

Picking to Light Warehouse LCD High-Brightness Digital Picking System for Factory
Picking to Light Warehouse LCD High-Brightness Digital Picking System for FactoryPicking to Light Warehouse LCD High-Brightness Digital Picking System for FactoryPicking to Light Warehouse LCD High-Brightness Digital Picking System for FactoryPicking to Light Warehouse LCD High-Brightness Digital Picking System for FactoryPicking to Light Warehouse LCD High-Brightness Digital Picking System for Factory
Categories868MHz Pick to Light
BrandSertag Pick to Light System Manufacturer
ModelPick to Light SETP_Label_V10
Screen display3-digit tube 0.8 inch
Displayable content0-999
Working temperature-10~65℃
Power SupplyDC 24V
Button4 Buttons
Indicator Light1 RGB light
Communication ModeWireless
ApplicationFactory, Warehouse, E-commerce, Logistics...
Download
Update TimeJul 24,2024
Detail Information

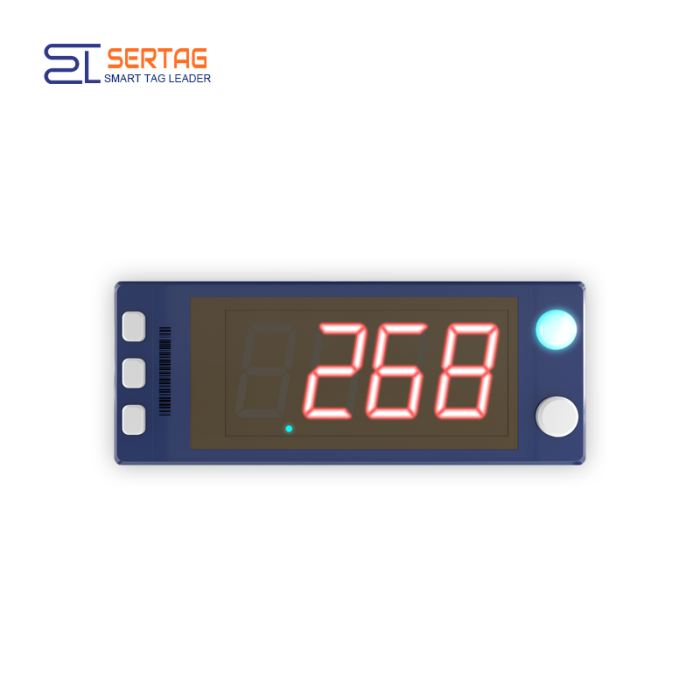

Pick to Light Warehouse System LCD High-Brightness Digital Tube SETP_Label_V10 Description
pick to light display
Picking to Light Warehouse LCD High-Brightness Digital Picking System for Factory
Welcome to the SETP_Label_V10, the pinnacle of efficiency in our pick to light series. This advanced system boasts a prominent 3-digit high-brightness LED digital tube display, each digit measuring 0.8 inches, capable of vividly showcasing numbers from 0 to 999 in a radiant red hue. Powered by a 24V external power supply, this solution ensures consistent and reliable performance, ideal for demanding warehouse environments. Complemented by four tactile buttons and a multi-color highlight indicator light set against a striking blue casing, this system stands out while providing intuitive functionality.

The high-visibility LED digital tube display serves as a beacon for precise picking guidance, facilitating swift and accurate inventory management. This cutting-edge solution not only embodies the hallmark features of our pick to light series but also elevates the experience with its multi-color highlight indicator, enhancing operational efficiency and ease of use.
Pick to Light Warehouse System LCD High-Brightness Digital Tube SETP_Label_V10 Specification
Model
SETP_Label_V10
Button
4 Buttons
Screen display
3-digit tube 0.8 inch
Indicator Light
1 RGB light
Digital Tube Color
Red
Working Temperature
-10~65℃
Displayable Content
0~999
Viewing Angle
Near 180°
Appearance of Size
114.5x44.5x19mm
Power Supply
DC 24V
Case Color
Blue
Communication Mode
Wireless
Wireless Firmware Update
Yes
Template Design DIY
Yes
Pick to Light Warehouse System LCD High-Brightness Digital Tube SETP_Label_V10 Installation Method
The SETP_Label_V10 offers three convenient installation methods to adapt to diverse environments:
① Adhesive fixation for swift deployment
② Magnetic fixation for effortless repositioning
③ Track slot fixation (can be customized): The slot size of 34.5x66.5mm, offering adaptability tailored to your spatial needs.

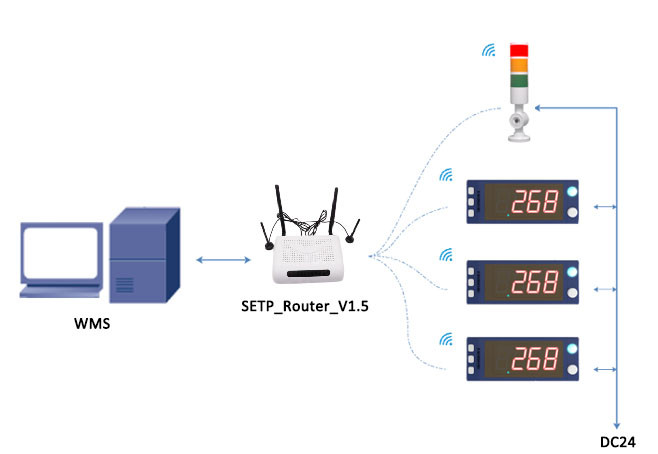

Purchasing Guide for the Base Stations of Pick to Light SETP_Label_V10
pick to light base station
Recommend!
Features: Equipped with a built-in server program for effortless data transmission.
Ease of Use: Users simply send operational instructions directly to this base station for efficient data transfer, ensuring user-friendly functionality.
Functionality: Facilitates instruction transmission via PC or scanner.
Operation: Functions by relaying instructions from the PC or scanner through the SETP_Router_V1.2 base station to control LED lights/screens on the pick-to-light system.
put to light base station
Pick to Light Warehouse System LCD High-Brightness Digital Tube SETP_Label_V10 Download
Pick To Light System-SETP_Label_V10
SETP_Label_V10 System Developer's Manual
Pick to Light Operation Manual
Pick to Light Warehouse System LCD High-Brightness Digital Tube SETP_Label_V10 Advantage
High-Brightness LED Display: Features a 3-digit LED digital tube display for clear numerical guidance from 0 to 999.

Vibrant Red Digital Tube: Offers vivid red digits for enhanced visibility in warehouse environments.

Reliable External Power Supply: Runs on a stable 24V external power supply for consistent and uninterrupted functionality.

Intuitive Interface: Incorporates four buttons and a multi-color highlight indicator for user-friendly and precise operations.

Pick to Light Warehouse System Application
pick to light cart
pick to light in factory
pick to light in warehouse
