Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit

Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit

Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit
Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo KitPick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo KitPick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo KitPick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit
CategoriesTest Kits
BrandSertag Pick to Light System Manufacturer
ModelPick by Light Demo Kit with SETP_Label_V13(Battery Powered)
Display TechnologyFull Graphic E ink Display
ServerBuilt in
Button1 Button
Indicator Light1 RGB Lights
Power Supply of Pick to LightBatteries
FeatureIt can display text and pictures, low power
ApplicationFactory, Warehouse, E-commerce, Logistics...
Download
Update TimeNov 3,2024
Detail Information

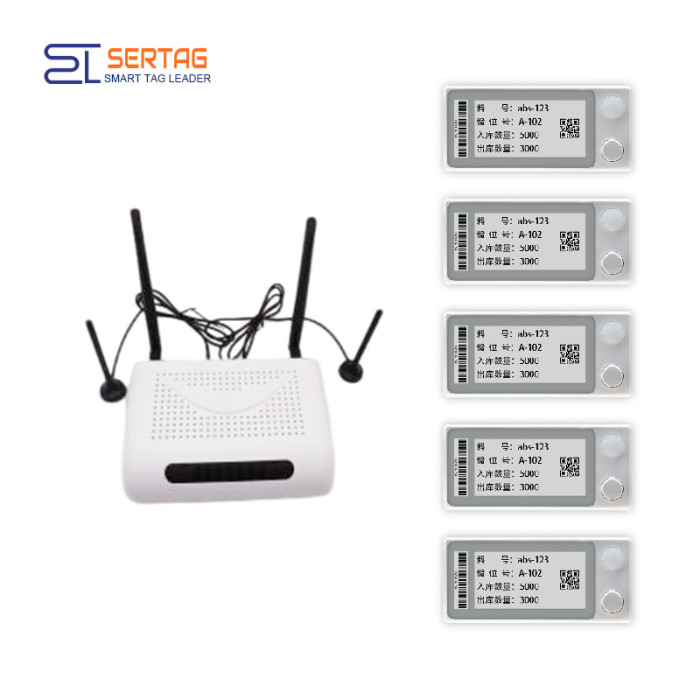

Pick by Light Hardware and Software, Pick Light Router, Digital Picking Labels Demo Kit
SETP_Label_V13 is a standout product in our Pick by Light series. This advanced system boasts a 2.1-inch epaper display, harnessing the benefits of eink technology, including remarkably low power consumption and an expansive viewing angle of nearly 180 degrees. The display is capable of showcasing text, images, barcodes, and QR codes, providing versatile applications. Powered by a coin cell battery, its minimalist design incorporates a single button alongside an RGB indicator light, providing intuitive functionality.

SETP_Router_V1.4 serves as the central hub in our Pick by Light series. Equipped with a built-in server program, this base station streamlines data transfer. Users can effortlessly input commands for seamless communication during operations.

pick to light
Pick-to-light system

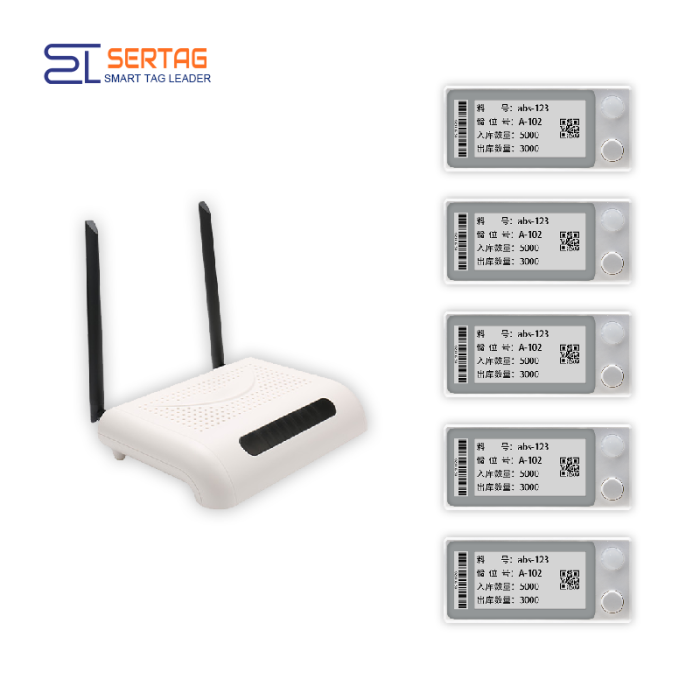

Pick by Light Demo Kit with SETP_Label_V13(Battery Powered) Including
① Pick by light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V13 (Battery Powered)
Model
SETP_Label_V13(Battery Powered)
Button
1 Button
Dimension
70x34.7x13.6mm
Indicator Light
1 RGB Light
Screen Size
2.1 inch
Working Temperature
0~50℃
Resolution
250x122
Operating Frequency
868MHz
Pixel Density
130dpi
Viewing Angle
Nearly 180°
Display Technology
Full Graphic E-ink Display
Displayable Content
Text/Picture/Barcode/QRcode
Pixel Color
Black&White
Power Supply
Battery Power
Case Color
Black or white
Battery
2200mAh(CR2477*2), Replaceable
Battery Lifetime
>2 years (10 times per day)
Communication Mode
Wireless
Wireless Firmware Update
Yes
Template Design DIY
Yes
Model
SETP_ Router_V1.4
Network
1
The Antenna
2
Communication Mode
868M, RJ45
Power Supply
DC 12V 1A or POE
Size
21*14*4.3cm
Operating System
linux
Working Temperature
-10~70℃
Wireless Distance
Radius 20-30m
Software Update
Yes
Number of Pick to Light Labels
>10000
Server
Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router
Access
Web access
Service Interface Protocol
Http, Data format:Json
Pick by Light Digital Picking Labels Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V13 units.
pick to light system
Pick by Light Demo Kit with  SETP_Label_V13(Battery Powered) Download
Pick To Light System-SETP_Label_V13
SETP_Label_V13 System Developer's Manual V1.2
Pick to Light Operation Manual
SETP_Router_V1.4 Operate Steps
Pick by Light Digital Picking Labels Demo Kit Advantage
Efficient Display Technology
The 2.1-inch e-paper display with a resolution of 250x122 ensures clear and sharp visuals, facilitating easy interpretation of information.

Low Power Consumption
Designed with low power consumption in mind, SETP_Label_V13 maximizes the lifespan of the coin cell battery, ensuring prolonged usage before requiring a replacement.

Wide Viewing Angle
With a 180° viewing angle, the display remains easily readable from different perspectives, enhancing visibility and usability.

Built-in Server Program
Equipped with a built-in server program, the router eliminates the need for external servers, simplifying the setup and reducing dependency on additional hardware.

Efficient Data Transfer
The router facilitates efficient and reliable data transfer between devices, ensuring real-time communication and enhancing overall operational efficiency.

Pick by Light Digital Picking Labels Application
pick to light application
put to light application
pick to light warehouse
