Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations

Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations

Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations
Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse OperationsPick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse OperationsPick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse OperationsPick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations
CategoriesTest Kits
BrandSertag Pick to Light System Manufacturer
ModelPick-to-Light System with SETP_Label_V3(Battery Powered)
Display TechnologyFull Graphic E ink Display
ServerBuilt in
Software UpdateYes
Operating Frequency868MHz
Communication ModeWireless
ApplicationFactory, Warehouse, E-commerce, Logistics...
Download
Update TimeDec 12,2024
Detail Information
Pick-to-Light System: Battery Powered E-ink Pick to Light label & Base Station Warehouse Operations
Revolutionize your warehouse operations with the Sertag Pick-to-Light System, a solution uniting the advanced capabilities of the SETP_Router_V1.4 base station and the versatile SETP_Label_V3 (Battery Powered) units. Designed to optimize picking processes, this integrated system offers unparalleled efficiency and control. Rapid communication between the base station and label units streamlines operations, minimizing picking errors and maximizing productivity. Intuitive buttons and clear indicator lights enhance user experience, reducing training time and improving operational fluency.

For businesses seeking tailored installation methods or specific customization options, our support team is readily available to assist and ensure the seamless integration of the Sertag Pick-to-Light System into your warehouse environment.

pick to light
Pick-to-light system
Model
SETP_Label_V3(Battery Powered)
Display Technology
Full Graphic E ink Display
Dimension
114.5x44.5x19mm
Pixel Color
Black & White
Screen Size
2.9 inch
Case Color
White
Resolution
296*128
Button
4 Buttons
Working Temperature
0~50℃
Indicator Light
1 RGB Lights
Operating Frequency
868MHz
Communication Mode
Wireless
Viewing Angle
Nearly 180°
Wireless Firmware Update
Yes
Displayable Content
Text/Picture/Barcode/QRcode
Template design DIY
Yes
Battery
Button battery pack 1800mAh(CR2450*3)
Battery Lifetime
>1 year (10 times per day)
Model
SETP_ Router_V1.4
Network
1
The Antenna
2
Communication Mode
868M, RJ45
Power Supply
DC 12V 1A or POE
Size
21*14*4.3cm
Operating System
linux
Working Temperature
-10~70℃
Wireless Distance
Radius 20-30m
Software Update
Yes
Number of Pick to Light Labels
>10000
Server
Built in:
webserver: Tomcat
Server system: JAVA
Database: Mysql
Router
Access
Web access
Service Interface Protocol
Http, Data format:Json

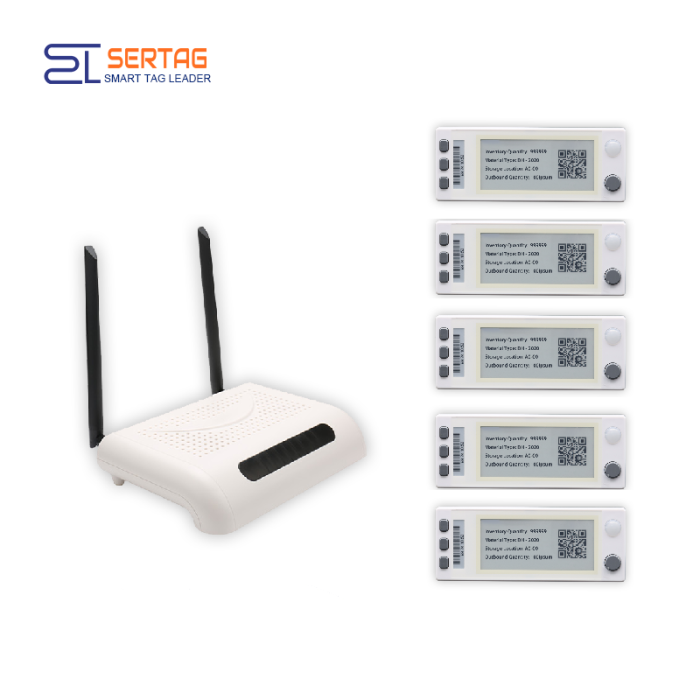

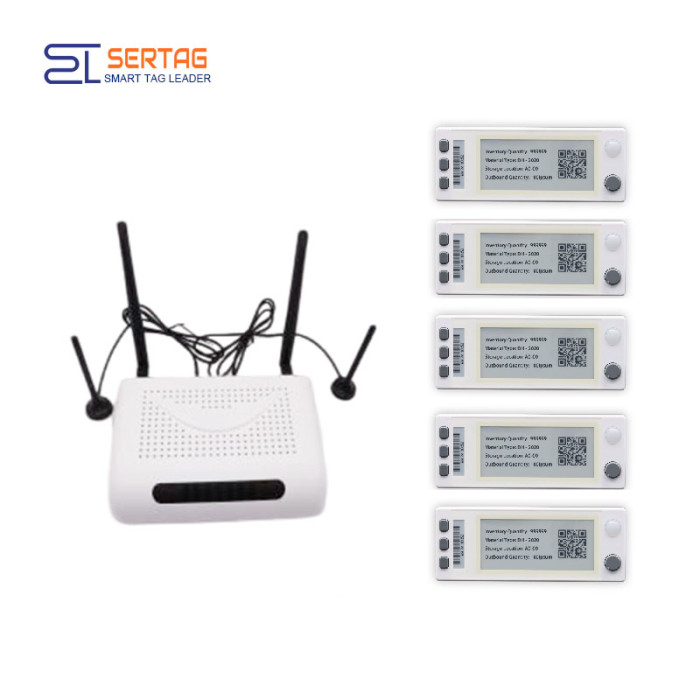

Pick-to-Light System with SETP_Label_V3(Battery Powered) Including
① Pick to light system built-in server Base Station SETP_Router_V1.4
② 5 SETP_Label_V3 (Battery Powered)
Pick-to-Light System Demo Kit Working Principle
The SETP_Router_V1.4 serves as the central hub, hosting a built-in server program for seamless data transmission. Users send operational commands to the base station, which relays instructions to the SETP_Label_V3 units. These battery-powered units feature a 2.9-inch electronic paper display, capable of showcasing text, images, QR codes, and more. With 4 buttons and an indicator light, they promptly respond to received commands by illuminating or updating displayed content.
pick to light system
Pick-to-Light System with SETP_Label_V3(Battery Powered) Download
Pick To Light System-SETP_Label_V3
SETP_Label_V3 System Developer's Manual
Pick to Light Operation Manual
SETP_Router_V1.4 Operate Steps
Pick-to-Light System Demo Kit  Advantage
Advanced Functionality
The SETP_Router_V1.4 serves as the nerve center, hosting a robust, built-in server program. This empowers users to seamlessly transmit operational commands directly to the base station, streamlining the entire data flow process within your warehouse environment.

Enhanced Display and Interaction
The SETP_Label_V3(Battery Powered) units, powered by long-lasting batteries, boast a 2.9-inch electronic paper display with minimal power consumption. This cutting-edge display technology supports the dynamic presentation of text, images, QR codes, and other crucial information, ensuring clear and precise communication throughout the picking process. With four easily accessible buttons and a visible indicator light, these units offer a user-friendly interface, simplifying interaction and control for your workforce.

Streamlined Operations
Through a seamless interaction between the base station and label units, the Sertag Pick-to-Light System optimizes warehouse operations. Upon receiving commands from the base station, the SETP_Label_V3(Battery Powered) units promptly respond by illuminating or updating displayed content, facilitating efficient and accurate picking processes.
Pick-to-Light System Demo Kit  Application
pick to light application
put to light application
pick to light warehouse
